README.md

Hardware for Cyclone-PCB-Factory

Version 2.0

Adressing all the issues from the original design, implementing improvements by yOPERO, Martin Zabojnik and others.

  • Tougher parts (great ongoing work!):
  • Stronger holders for the linear bearings (vibration makes them slide away)
  • Reinforce screw holders
  • Attachment for a vacuum cleaner
  • Better scalability (particularly for the Y axis)
  • Better spindle motor design:
  • Brushless motor for the spindle
  • Spindle speed control
  • Integrated endstop holders

Work in progress

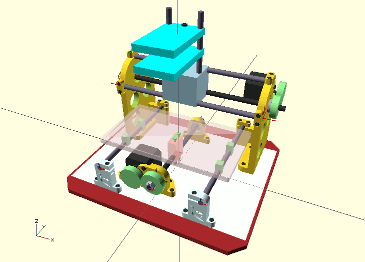

ScreenShot

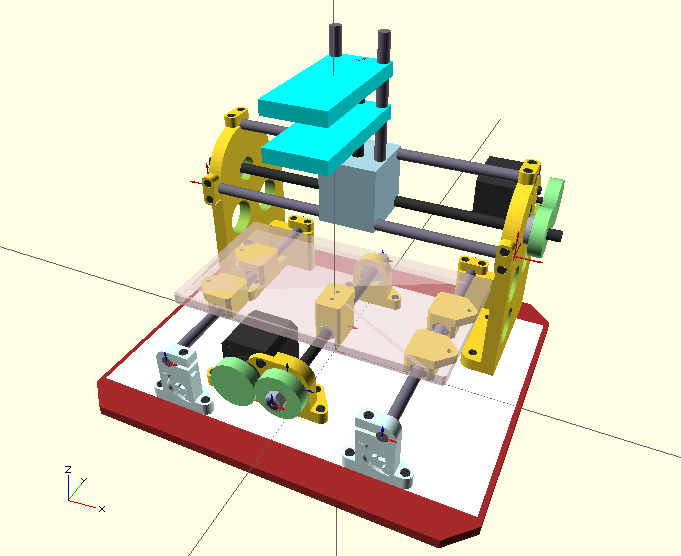

The new design tries to be more parameterized:

ScreenShot

Disclaimer

This hardware/software is provided "as is", and you use the hardware/software at your own risk. Under nocircumstances shall any author be liable for direct, indirect, special, incidental, or consequential damages resulting from the use, misuse, or inability to use this hardware/software, even if the authors have been advised of the possibility of such damages.
