Velxio: Arduino & Embedded Board Emulator

Live at velxio.dev

A fully local, open-source multi-board emulator. Write Arduino C++ or Python, compile it, and simulate it with real CPU emulation and 48+ interactive electronic components — all running in your browser.

19 boards · 5 CPU architectures: AVR8 (ATmega / ATtiny), ARM Cortex-M0+ (RP2040), RISC-V RV32IMC/EC (ESP32-C3 / CH32V003), Xtensa LX6/LX7 (ESP32 / ESP32-S3 via QEMU), and ARM Cortex-A53 (Raspberry Pi 3 Linux via QEMU).

---

---

Support the Project

Velxio is free and open-source. Building and maintaining a full multi-board emulator takes a lot of time — if it saves you time or you enjoy the project, sponsoring me directly helps keep development going.

Platform	Link
GitHub Sponsors (preferred)	github.com/sponsors/davidmonterocrespo24
PayPal	paypal.me/odoonext

Your support helps cover server costs, library maintenance, and frees up time to add new boards, components, and features. Thank you!

---

Try it now

https://velxio.dev — no installation needed. Open the editor, write your sketch, and simulate directly in the browser.

To self-host with Docker (single command):

docker run -d -p 3080:80 ghcr.io/davidmonterocrespo24/velxio:master

Then open http://localhost:3080.

---

Screenshots

Raspberry Pi Pico simulation — ADC read test with two potentiometers, Serial Monitor showing live output, and compilation console at the bottom.

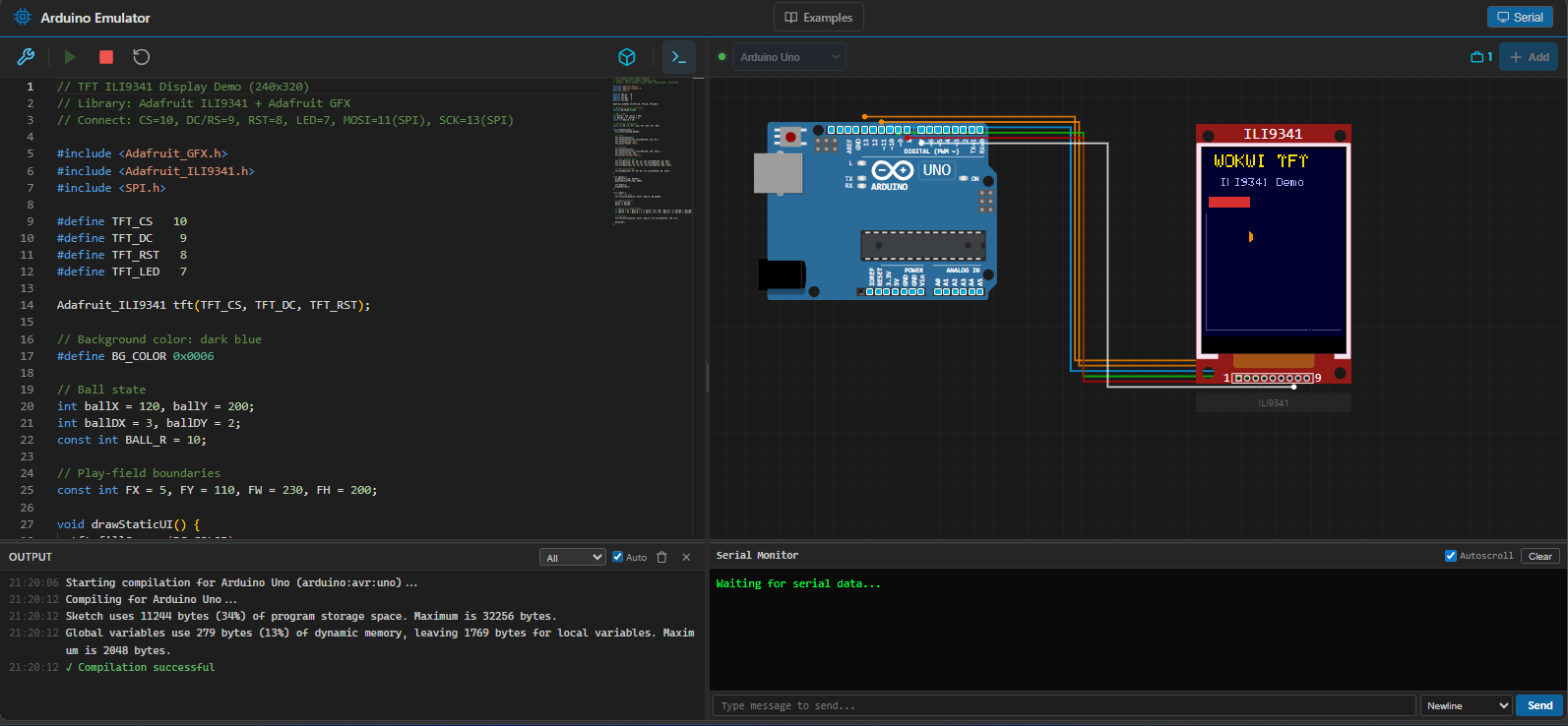

Arduino Uno driving an ILI9341 240×320 TFT display via SPI — rendering a real-time graphics demo using Adafruit_GFX + Adafruit_ILI9341.

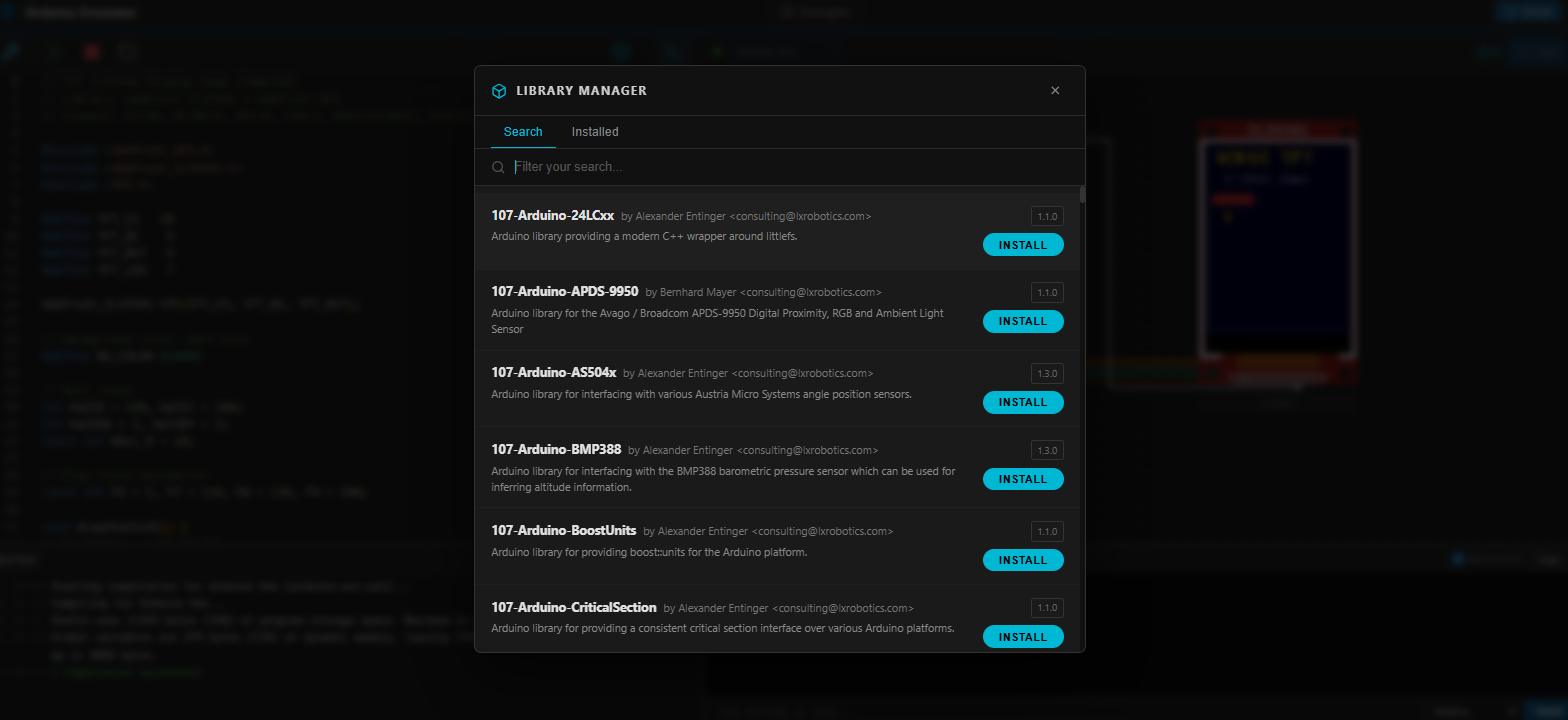

Library Manager loads the full Arduino library index on open — browse and install libraries without typing first.

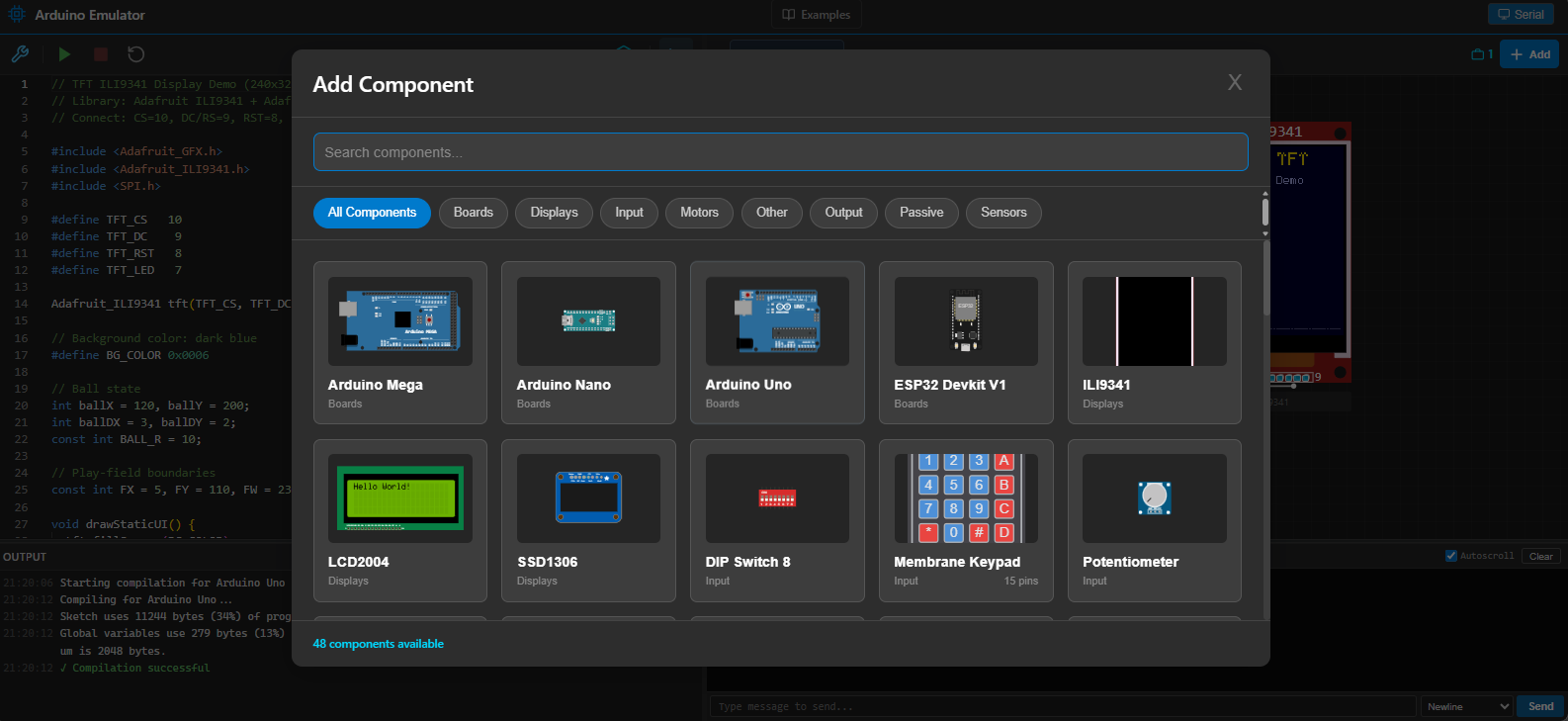

Component Picker showing 48 available components with visual previews, search, and category filters.

---

Supported Boards

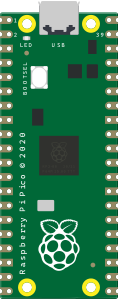

Raspberry Pi Pico	Raspberry Pi Pico W	ESP32 DevKit C	ESP32-S3
ESP32-C3	Seeed XIAO ESP32-C3	ESP32-C3 SuperMini	ESP32-CAM

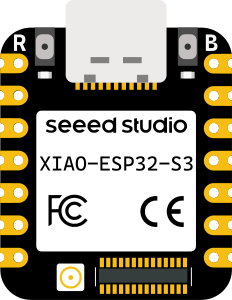

Seeed XIAO ESP32-S3	Arduino Nano ESP32	Raspberry Pi 3B	Arduino Uno · Nano · Mega 2560 ATtiny85 · Leonardo · Pro Mini (AVR8 / ATmega)

Board	CPU	Engine	Language
Arduino Uno	ATmega328p @ 16 MHz	avr8js (browser)	C++ (Arduino)
Arduino Nano	ATmega328p @ 16 MHz	avr8js (browser)	C++ (Arduino)
Arduino Mega 2560	ATmega2560 @ 16 MHz	avr8js (browser)	C++ (Arduino)
ATtiny85	ATtiny85 @ 8 MHz (int) / 16 MHz (ext)	avr8js (browser)	C++ (Arduino)
Arduino Leonardo	ATmega32u4 @ 16 MHz	avr8js (browser)	C++ (Arduino)
Arduino Pro Mini	ATmega328p @ 8/16 MHz	avr8js (browser)	C++ (Arduino)
Raspberry Pi Pico	RP2040 @ 133 MHz	rp2040js (browser)	C++ (Arduino)
Raspberry Pi Pico W	RP2040 @ 133 MHz	rp2040js (browser)	C++ (Arduino)
ESP32 DevKit V1	Xtensa LX6 @ 240 MHz	QEMU lcgamboa (backend)	C++ (Arduino)
ESP32 DevKit C V4	Xtensa LX6 @ 240 MHz	QEMU lcgamboa (backend)	C++ (Arduino)
ESP32-S3	Xtensa LX7 @ 240 MHz	QEMU lcgamboa (backend)	C++ (Arduino)
ESP32-CAM	Xtensa LX6 @ 240 MHz	QEMU lcgamboa (backend)	C++ (Arduino)
Seeed XIAO ESP32-S3	Xtensa LX7 @ 240 MHz	QEMU lcgamboa (backend)	C++ (Arduino)
Arduino Nano ESP32	Xtensa LX6 @ 240 MHz	QEMU lcgamboa (backend)	C++ (Arduino)
ESP32-C3 DevKit	RISC-V RV32IMC @ 160 MHz	RiscVCore.ts (browser)	C++ (Arduino)
Seeed XIAO ESP32-C3	RISC-V RV32IMC @ 160 MHz	RiscVCore.ts (browser)	C++ (Arduino)
ESP32-C3 SuperMini	RISC-V RV32IMC @ 160 MHz	RiscVCore.ts (browser)	C++ (Arduino)
CH32V003	RISC-V RV32EC @ 48 MHz	RiscVCore.ts (browser)	C++ (Arduino)

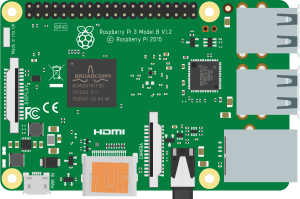

Raspberry Pi 3B	ARM Cortex-A53 @ 1.2 GHz	QEMU raspi3b (backend)	Python

---

Features

Code Editing

• Monaco Editor — Full C++ / Python editor with syntax highlighting, autocomplete, minimap, and dark theme
• Multi-file workspace — create, rename, delete, and switch between multiple .ino / .h / .cpp / .py files
• Arduino compilation via arduino-cli backend — compile sketches to .hex / .bin files
• Compile / Run / Stop / Reset toolbar buttons with status messages
• Compilation console — resizable output panel showing full compiler output, warnings, and errors

Multi-Board Simulation

AVR8 (Arduino Uno / Nano / Mega / ATtiny85 / Leonardo / Pro Mini)

• Real ATmega328p / ATmega2560 / ATmega32u4 / ATtiny85 emulation at native clock speed via avr8js
• Full GPIO — PORTB, PORTC, PORTD (Uno/Nano/Mega); all ATtiny85 ports (PB0–PB5)
• Timer0/Timer1/Timer2 — millis(), delay(), PWM via analogWrite()
• USART — full transmit and receive, auto baud-rate detection
• ADC — analogRead(), voltage injection from potentiometers on canvas
• SPI — hardware SPI peripheral (ILI9341, SD card, etc.)
• I2C (TWI) — hardware I2C with virtual device bus
• ATtiny85 — all 6 I/O pins, USI (Wire), Timer0/Timer1, 10-bit ADC; uses AttinyCore
• ~60 FPS simulation loop via requestAnimationFrame

RP2040 (Raspberry Pi Pico / Pico W)

• Real RP2040 emulation at 133 MHz via rp2040js — ARM Cortex-M0+
• All 30 GPIO pins — input/output, event listeners, pin state injection
• UART0 + UART1 — serial output in Serial Monitor; Serial input from UI
• ADC — 12-bit on GPIO 26–29 (A0–A3) + internal temperature sensor (ch4)
• I2C0 + I2C1 — master mode with virtual device bus (DS1307, TMP102, EEPROM)
• SPI0 + SPI1 — loopback default; custom handler supported
• PWM — available on any GPIO pin
• WFI optimization — delay() skips ahead in simulation time instead of busy-waiting
• Oscilloscope — GPIO transition timestamps at ~8 ns resolution
• Compiled with the earlephilhower arduino-pico core

See docs/RP2040_EMULATION.md for full technical details.

ESP32 / ESP32-S3 (Xtensa QEMU)

• Real Xtensa LX6/LX7 dual-core emulation via lcgamboa/qemu
• Full GPIO — all 40 GPIO pins, direction tracking, state callbacks, GPIO32–39 fix
• UART0/1/2 — multi-UART serial, baud-rate detection
• ADC — 12-bit on all ADC-capable pins (0–3300 mV injection from potentiometers)
• I2C — synchronous bus with virtual device response
• SPI — full-duplex with configurable MISO byte injection
• RMT / NeoPixel — hardware RMT decoder, WS2812 24-bit GRB frame decoding
• LEDC/PWM — 16-channel duty cycle readout, LEDC→GPIO mapping, LED brightness
• WiFi — SLIRP NAT emulation (WiFi.begin("PICSimLabWifi", ""))
• Requires arduino-esp32 2.0.17 (IDF 4.4.x) — only version compatible with lcgamboa WiFi

See docs/ESP32_EMULATION.md for setup and full technical details.

ESP32-C3 / XIAO-C3 / SuperMini / CH32V003 (RISC-V, in-browser)

• RV32IMC emulation in TypeScript — no backend, no QEMU, no WebSocket
• GPIO 0–21 via W1TS/W1TC MMIO registers (ESP32-C3); PB0–PB5 (CH32V003)
• UART0 serial output in Serial Monitor
• CH32V003 — RV32EC core at 48 MHz, 16 KB flash, DIP-8 / SOP package — ultra-compact
• Instant startup — zero latency, works offline
• CI-testable — same TypeScript runs in Vitest

See docs/RISCV_EMULATION.md for full technical details.

Raspberry Pi 3B (QEMU raspi3b)

• Full BCM2837 emulation via qemu-system-aarch64 -M raspi3b
• Boots real Raspberry Pi OS (Trixie) — runs Python scripts directly
• RPi.GPIO shim — drop-in replacement for the GPIO library; sends pin events to the frontend over a text protocol
• GPIO 0–27 — output and input, event detection, PWM (binary state)
• Dual serial — ttyAMA0 for user Serial Monitor, ttyAMA1 for GPIO protocol
• Virtual File System — edit Python scripts in the UI, upload to Pi at boot
• Multi-board serial bridge — Pi ↔ Arduino serial communication on the same canvas
• qcow2 overlay — base SD image never modified; session changes are isolated

See docs/RASPBERRYPI3_EMULATION.md for full technical details.

Serial Monitor

• Live serial output — characters as the sketch/script sends them
• Auto baud-rate detection — reads hardware registers, no manual configuration needed
• Send data to the RX pin from the UI
• Autoscroll with toggle

Component System (48+ Components)

• 48 electronic components from wokwi-elements
• Component picker with search, category filters, and live previews
• Drag-and-drop repositioning on the simulation canvas
• Component rotation in 90° increments
• Property dialog — pin roles, Arduino pin assignment, rotate & delete

Wire System

• Wire creation — click a pin to start, click another pin to connect
• Orthogonal routing — no diagonal paths
• 8 signal-type wire colors: Red (VCC), Black (GND), Blue (Analog), Green (Digital), Purple (PWM), Gold (I2C), Orange (SPI), Cyan (USART)
• Segment-based wire editing — drag segments perpendicular to their orientation

Library Manager

• Browse and install the full Arduino library index directly from the UI
• Live search, installed tab, version display

Auth & Project Persistence

• Email/password and Google OAuth sign-in
• Project save with name, description, and public/private visibility
• Project URL — each project gets a permanent URL at /project/:id
• Sketch files stored on disk per project (accessible from the host via Docker volume)
• User profile at /:username showing public projects

Example Projects

• Built-in examples including Blink, Traffic Light, Button Control, Fade LED, Serial Hello World, RGB LED, Simon Says, LCD 20×4, and Pi + Arduino serial control
• One-click loading into the editor

---

Self-Hosting

Option A: Docker (single container, recommended)

# Pull and run
docker run -d \
  --name velxio \
  -p 3080:80 \
  -v $(pwd)/data:/app/data \
  ghcr.io/davidmonterocrespo24/velxio:master

Open http://localhost:3080.

The /app/data volume contains:

• velxio.db — SQLite database (users, projects metadata)
• projects/{id}/ — sketch files per project

Option B: Docker Compose

git clone https://github.com/davidmonterocrespo24/velxio.git
cd velxio
cp backend/.env.example backend/.env   # edit as needed
docker compose -f docker-compose.prod.yml up -d

Environment variables (backend/.env)

Variable	Default	Description
SECRET_KEY	(required)	JWT signing secret
DATABASE_URL	sqlite+aiosqlite:////app/data/velxio.db	SQLite path
DATA_DIR	/app/data	Directory for project files
FRONTEND_URL	http://localhost:5173	Used for OAuth redirect
GOOGLE_CLIENT_ID	—	Google OAuth client ID
GOOGLE_CLIENT_SECRET	—	Google OAuth client secret
GOOGLE_REDIRECT_URI	http://localhost:8001/api/auth/google/callback	Must match Google Console
COOKIE_SECURE	false	Set true when serving over HTTPS

Option C: Manual Setup

Prerequisites: Node.js 18+, Python 3.12+, arduino-cli

git clone https://github.com/davidmonterocrespo24/velxio.git
cd velxio

# Backend
cd backend
python -m venv venv && source venv/bin/activate  # Windows: venv\Scripts\activate
pip install -r requirements.txt
uvicorn app.main:app --reload --port 8001

# Frontend (new terminal)
cd frontend
npm install
npm run dev

Open http://localhost:5173.

arduino-cli setup (first time):

arduino-cli core update-index
arduino-cli core install arduino:avr

# For Raspberry Pi Pico / Pico W:
arduino-cli config add board_manager.additional_urls \
  https://github.com/earlephilhower/arduino-pico/releases/download/global/package_rp2040_index.json
arduino-cli core install rp2040:rp2040

# For ESP32 / ESP32-S3 / ESP32-C3:
arduino-cli config add board_manager.additional_urls \
  https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
arduino-cli core install esp32:esp32@2.0.17

---

Project Structure

velxio/
├── frontend/                    # React + Vite + TypeScript
│   └── src/
│       ├── pages/               # LandingPage, EditorPage, UserProfilePage, ...
│       ├── components/          # Editor, simulator canvas, modals, layout
│       ├── simulation/          # AVRSimulator, RP2040Simulator, RiscVCore,
│       │                        # RaspberryPi3Bridge, Esp32Bridge, PinManager
│       ├── store/               # Zustand stores (auth, editor, simulator, project, vfs)
│       └── services/            # API clients
├── backend/                     # FastAPI + Python
│   └── app/
│       ├── api/routes/          # compile, auth, projects, libraries, simulation (ws)
│       ├── models/              # User, Project (SQLAlchemy)
│       ├── services/            # arduino_cli, esp32_worker, qemu_manager, gpio_shim
│       └── core/                # config, security, dependencies
├── wokwi-libs/                  # Local clones of Wokwi repos
│   ├── wokwi-elements/          # Web Components for electronic parts
│   ├── avr8js/                  # AVR8 CPU emulator
│   ├── rp2040js/                # RP2040 emulator
│   └── qemu-lcgamboa/           # QEMU fork for ESP32 Xtensa emulation
├── img/                         # Raspberry Pi 3 boot images (kernel8.img, dtb, OS image)
├── deploy/                      # nginx.conf, entrypoint.sh
├── docs/                        # Technical documentation
├── Dockerfile.standalone        # Single-container production image
├── docker-compose.yml           # Development compose
└── docker-compose.prod.yml      # Production compose

---

Technologies

Layer	Stack
Frontend	React 19, Vite 7, TypeScript 5.9, Monaco Editor, Zustand, React Router 7
Backend	FastAPI, SQLAlchemy 2.0 async, aiosqlite, uvicorn
AVR Simulation	avr8js (ATmega328p / ATmega2560)
RP2040 Simulation	rp2040js (ARM Cortex-M0+)
RISC-V Simulation	RiscVCore.ts (RV32IMC, custom TypeScript)
ESP32 Simulation	QEMU 8.1.3 lcgamboa fork (Xtensa LX6/LX7)
Raspberry Pi 3 Simulation	QEMU 8.1.3 (qemu-system-aarch64 -M raspi3b) + Raspberry Pi OS Trixie
UI Components	wokwi-elements (Web Components)
Compiler	arduino-cli (subprocess)
Auth	JWT (httpOnly cookie), Google OAuth 2.0
Persistence	SQLite + disk volume (/app/data/projects/{id}/)
Deploy	Docker, nginx, GitHub Actions → GHCR + Docker Hub

---

Documentation

Topic	Document
Getting Started	docs/getting-started.md
Architecture Overview	docs/ARCHITECTURE.md
Emulator Architecture	docs/emulator.md
Wokwi Libraries Integration	docs/WOKWI_LIBS.md
RP2040 Emulation (Pico)	docs/RP2040_EMULATION.md
Raspberry Pi 3 Emulation	docs/RASPBERRYPI3_EMULATION.md
ESP32 Emulation (Xtensa)	docs/ESP32_EMULATION.md
RISC-V Emulation (ESP32-C3)	docs/RISCV_EMULATION.md
Components Reference	docs/components.md
MCP Server	docs/MCP.md
Roadmap	docs/roadmap.md

---

Troubleshooting

arduino-cli: command not found — install arduino-cli and add to PATH.

LED doesn't blink — check port listeners in browser console; verify pin mapping in the component property dialog.

Serial Monitor shows nothing — ensure Serial.begin() is called before Serial.print().

ESP32 not starting — verify libqemu-xtensa.dll (Windows) or libqemu-xtensa.so (Linux) is present in backend/app/services/.

Pi 3 takes too long to boot — QEMU needs 2–5 seconds to initialize; the "booting" status in the UI is expected.

Compilation errors — check the compilation console; verify the correct core is installed for the selected board.

---

Community

Join the Discord server to ask questions, share projects, and follow updates:

discord.gg/rCScB9cG

Contributing

Suggestions, bug reports, and pull requests are welcome at github.com/davidmonterocrespo24/velxio.

If you'd like to support the project financially, see the Support the Project section above or sponsor directly at github.com/sponsors/davidmonterocrespo24.

Note: All contributors must sign a Contributor License Agreement (CLA) so that the dual-licensing model remains valid. A CLA check runs automatically on pull requests.

License

Velxio uses a dual-licensing model:

Use case	License	Cost
Personal, educational, open-source (AGPLv3 compliant)	AGPLv3	Free
Proprietary / closed-source product or SaaS	Commercial License	Paid

The AGPLv3 is a certified Open Source license. It is free for all uses — including commercial — as long as any modifications or network-accessible deployments make their source code available under the same license. Companies that cannot comply with that requirement can purchase a Commercial License.

For commercial licensing inquiries: davidmonterocrespo24@gmail.com

See LICENSE and COMMERCIAL_LICENSE.md for full terms.

References

• Wokwi — Inspiration
• avr8js — AVR8 emulator
• wokwi-elements — Electronic web components
• rp2040js — RP2040 emulator
• lcgamboa/qemu — QEMU fork for ESP32 Xtensa emulation
• arduino-cli — Arduino compiler
• Monaco Editor — Code editor
• QEMU — Machine emulator (Raspberry Pi 3)
