# RISC-V Emulation (ESP32-C3 / XIAO-C3 / C3 SuperMini) > Status: **Functional** · In-browser emulation · No backend dependencies > Engine: **RiscVCore (RV32IMC)** — implemented in TypeScript > Platform: **ESP32-C3 @ 160 MHz** — 32-bit RISC-V architecture --- ## Table of Contents 1. [Overview](#1-overview) 2. [Supported Boards](#2-supported-boards) 3. [Emulator Architecture](#3-emulator-architecture) 4. [Emulated Memory and Peripherals](#4-emulated-memory-and-peripherals) 5. [Full Flow: Compile and Run](#5-full-flow-compile-and-run) 6. [ESP32 Image Format](#6-esp32-image-format) 7. [Supported ISA — RV32IMC](#7-supported-isa--rv32imc) 8. [GPIO](#8-gpio) 9. [UART0 — Serial Monitor](#9-uart0--serial-monitor) 10. [Limitations](#10-limitations) 11. [Tests](#11-tests) 12. [Differences vs Xtensa Emulation (ESP32 / ESP32-S3)](#12-differences-vs-xtensa-emulation-esp32--esp32-s3) 13. [Key Files](#13-key-files) --- ## 1. Overview Boards based on **ESP32-C3** use Espressif's **ESP32-C3** processor, which implements the **RISC-V RV32IMC** architecture (32-bit, Multiply, Compressed instructions). Unlike the ESP32 and ESP32-S3 (Xtensa LX6/LX7), the C3 **does not require QEMU or a backend** to be emulated. ### Emulation Engine Comparison | Board | CPU | Engine | | ----- | --- | ------ | | ESP32, ESP32-S3 | Xtensa LX6/LX7 | QEMU lcgamboa (backend WebSocket) | | **ESP32-C3, XIAO-C3, C3 SuperMini** | **RV32IMC @ 160 MHz** | **RiscVCore.ts (browser, no backend)** | | Arduino Uno/Nano/Mega | AVR ATmega | avr8js (browser) | | Raspberry Pi Pico | RP2040 | rp2040js (browser) | ### Advantages of the JS Emulator - **No network dependencies** — works offline, no WebSocket connection to the backend - **Instant startup** — no QEMU process to launch (0 ms latency) - **Testable with Vitest** — the same TypeScript code that runs in production can be tested in CI - **Cross-platform** — works the same on Windows, macOS, Linux, and Docker --- ## 2. Supported Boards

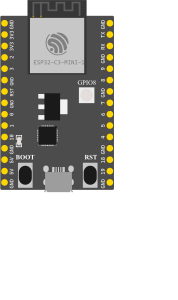

ESP32-C3 DevKit
ESP32-C3 DevKit

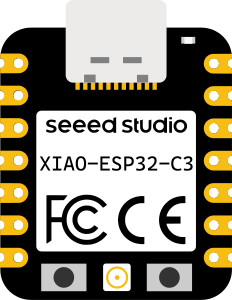

Seeed XIAO ESP32-C3
Seeed XIAO ESP32-C3

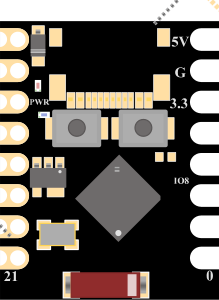

ESP32-C3 SuperMini
ESP32-C3 SuperMini
| Board | arduino-cli FQBN | Built-in LED | | ----- | ---------------- | ------------ | | ESP32-C3 DevKit | `esp32:esp32:esp32c3` | GPIO 8 | | Seeed XIAO ESP32-C3 | `esp32:esp32:XIAO_ESP32C3` | GPIO 10 (active-low) | | ESP32-C3 SuperMini | `esp32:esp32:esp32c3` | GPIO 8 | --- ## 3. Emulator Architecture ```text Arduino Sketch (.ino) │ ▼ arduino-cli (backend) sketch.ino.bin ← ESP32 image format (IROM/DRAM/IRAM segments) │ ▼ base64 → frontend compileBoardProgram(boardId, base64) │ ▼ Esp32C3Simulator.loadFlashImage(base64) parseMergedFlashImage() ← reads segments from the 4MB image │ ├── IROM segment → flash buffer (0x42000000) ├── DROM segment → flash buffer (0x3C000000, alias) ├── DRAM segment → dram buffer (0x3FC80000) └── IRAM segment → iram buffer (0x4037C000) │ ▼ core.reset(entryPoint) RiscVCore.step() ← requestAnimationFrame @ 60 FPS │ 2,666,667 cycles/frame (160 MHz ÷ 60) ├── MMIO GPIO_W1TS/W1TC → onPinChangeWithTime → visual components └── MMIO UART0 FIFO → onSerialData → Serial Monitor ``` ### Main Classes | Class | File | Responsibility | | ----- | ---- | -------------- | | `RiscVCore` | `simulation/RiscVCore.ts` | RV32IMC decoder/executor, generic MMIO | | `Esp32C3Simulator` | `simulation/Esp32C3Simulator.ts` | ESP32-C3 memory map, GPIO, UART0, RAF loop | | `parseMergedFlashImage` | `utils/esp32ImageParser.ts` | ESP32 image format parsing (segments, entry point) | --- ## 4. Emulated Memory and Peripherals ### Memory Map | Region | Base Address | Size | Description | | ------ | ------------ | ---- | ----------- | | Flash IROM | `0x42000000` | 4 MB | Executable code (core's main buffer) | | Flash DROM | `0x3C000000` | 4 MB | Read-only data (alias of the same buffer) | | DRAM | `0x3FC80000` | 384 KB | Data RAM (stack, global variables) | | IRAM | `0x4037C000` | 384 KB | Instruction RAM (ISR, time-critical code) | | UART0 | `0x60000000` | 1 KB | Serial port 0 | | GPIO | `0x60004000` | 512 B | GPIO registers | ### GPIO — Implemented Registers | Register | Offset | Function | | -------- | ------ | -------- | | `GPIO_OUT_REG` | `+0x04` | Read/write output state of all pins | | `GPIO_OUT_W1TS_REG` | `+0x08` | **Set bits** — drive pins HIGH (write-only) | | `GPIO_OUT_W1TC_REG` | `+0x0C` | **Clear bits** — drive pins LOW (write-only) | | `GPIO_IN_REG` | `+0x3C` | Read input state of pins | | `GPIO_ENABLE_REG` | `+0x20` | Pin direction (always returns `0xFF`) | Covers **GPIO 0–21** (all available on ESP32-C3). ### UART0 — Implemented Registers | Register | Offset | Function | | -------- | ------ | -------- | | `UART_FIFO_REG` | `+0x00` | Write TX byte / read RX byte | | `UART_STATUS_REG` | `+0x1C` | FIFO status (always returns `0` = ready) | RX byte reading is available to simulate input from the Serial Monitor. ### Peripherals NOT Emulated (return 0 on read) - Interrupt Matrix (`0x600C2000`) - System / Clock (`0x600C0000`, `0x60008000`) - Cache controller (`0x600C4000`) - Timer Group 0/1 - SPI flash controller - BLE / WiFi MAC - ADC / DAC > These peripherals return `0` by default. Code that depends on them may not function correctly (see [Limitations](#10-limitations)). --- ## 5. Full Flow: Compile and Run ### 5.1 Compile the Sketch ```bash # arduino-cli compiles for ESP32-C3: arduino-cli compile \ --fqbn esp32:esp32:esp32c3 \ --output-dir build/ \ mi_sketch/ # The backend automatically creates the merged image: # build/mi_sketch.ino.bootloader.bin → 0x01000 # build/mi_sketch.ino.partitions.bin → 0x08000 # build/mi_sketch.ino.bin → 0x10000 (app) # → merged: sketch.ino.merged.bin (4 MB) ``` The Velxio backend produces this image automatically and sends it to the frontend as base64. ### 5.2 Minimal Sketch for ESP32-C3 ```cpp // LED on GPIO 8 (ESP32-C3 DevKit) #define LED_PIN 8 void setup() { pinMode(LED_PIN, OUTPUT); Serial.begin(115200); Serial.println("ESP32-C3 started"); } void loop() { digitalWrite(LED_PIN, HIGH); Serial.println("LED ON"); delay(500); digitalWrite(LED_PIN, LOW); Serial.println("LED OFF"); delay(500); } ``` ### 5.3 Bare-Metal Sketch (for direct emulation tests) To verify the emulation without the Arduino framework, you can compile directly with the RISC-V toolchain: ```c /* blink.c — bare-metal, no ESP-IDF */ #define GPIO_W1TS (*(volatile unsigned int *)0x60004008u) #define GPIO_W1TC (*(volatile unsigned int *)0x6000400Cu) #define LED_BIT (1u << 8) static void delay(int n) { for (volatile int i = 0; i < n; i++); } void _start(void) { while (1) { GPIO_W1TS = LED_BIT; /* LED ON */ delay(500); GPIO_W1TC = LED_BIT; /* LED OFF */ delay(500); } } ``` Compile with the toolchain bundled in arduino-cli: ```bash # Toolchain installed with: arduino-cli core install esp32:esp32 TOOLCHAIN="$LOCALAPPDATA/Arduino15/packages/esp32/tools/riscv32-esp-elf-gcc/esp-2021r2-patch5-8.4.0/bin" "$TOOLCHAIN/riscv32-esp-elf-gcc" \ -march=rv32imc -mabi=ilp32 -Os -nostdlib -nostartfiles \ -T link.ld -o blink.elf blink.c "$TOOLCHAIN/riscv32-esp-elf-objcopy" -O binary blink.elf blink.bin ``` See full script: `frontend/src/__tests__/fixtures/esp32c3-blink/build.sh` --- ## 6. ESP32 Image Format The backend produces a merged **4 MB** image: ```text Offset 0x00000: 0xFF (empty) Offset 0x01000: bootloader (ESP32 format image, magic 0xE9) Offset 0x08000: partition table Offset 0x10000: app binary (ESP32 format image, magic 0xE9) ← parsed here ``` ### ESP32 Image Header (24 bytes) ```text +0x00 magic (0xE9) +0x01 segment_count +0x02 spi_mode +0x03 spi_speed_size +0x04 entry_addr ← uint32 LE — firmware entry point PC +0x08 extended fields (16 bytes) ``` ### Segment Header (8 bytes) ```text +0x00 load_addr ← destination virtual address (e.g. 0x42000000) +0x04 data_len +0x08 data[data_len] ``` The `parseMergedFlashImage()` parser in `utils/esp32ImageParser.ts` extracts all segments and the entry point, which is used for the core reset (`core.reset(entryPoint)`). --- ## 7. Supported ISA — RV32IMC `RiscVCore.ts` implements the three extensions required to run code compiled for ESP32-C3: ### RV32I — Base Integer (40 instructions) Includes: LUI, AUIPC, JAL, JALR, BEQ/BNE/BLT/BGE/BLTU/BGEU, LB/LH/LW/LBU/LHU, SB/SH/SW, ADDI/SLTI/SLTIU/XORI/ORI/ANDI/SLLI/SRLI/SRAI, ADD/SUB/SLL/SLT/SLTU/XOR/SRL/SRA/OR/AND, FENCE, ECALL/EBREAK, CSR (reads return 0) ### RV32M — Multiply and Divide (8 instructions) | Instruction | Operation | | ----------- | --------- | | `MUL` | Integer product (low 32 bits) | | `MULH` | Signed product (high 32 bits) | | `MULHSU` | Mixed signed×unsigned product (high bits) | | `MULHU` | Unsigned product (high 32 bits) | | `DIV` | Signed integer division | | `DIVU` | Unsigned integer division | | `REM` | Signed remainder | | `REMU` | Unsigned remainder | ### RV32C — Compressed Instructions (16-bit) All 16-bit instructions from the standard C extension are supported. They are detected by `(halfword & 3) !== 3` and decompressed to their RV32I equivalent before execution. This is critical: the GCC compiler for ESP32-C3 heavily generates C instructions (`c.addi`, `c.sw`, `c.lw`, `c.j`, `c.beqz`, `c.bnez`, etc.) which represent ~30-40% of all instructions in the final binary. --- ## 8. GPIO GPIO handling follows the W1TS/W1TC register model of the ESP32-C3: ```typescript // Arduino sketch: digitalWrite(8, HIGH); // → internally writes 1<<8 to GPIO_OUT_W1TS_REG // In the simulator: // SW x10, 0(x12) where x10=256 (1<<8), x12=0x60004008 (W1TS) // → writes 4 bytes to 0x60004008..0x6000400B // → byteIdx=1 (offset 0x09): val=0x01, shift=8 → gpioOut |= 0x100 // → changed = prev ^ gpioOut ≠ 0 → fires onPinChangeWithTime(8, true, timeMs) ``` The callback `onPinChangeWithTime(pin, state, timeMs)` is the integration point with the visual components. `timeMs` is the simulated time in milliseconds (calculated as `core.cycles / CPU_HZ * 1000`). --- ## 9. UART0 — Serial Monitor Any byte written to `UART0_FIFO_REG` (0x60000000) calls the `onSerialData(char)` callback: ```cpp // Arduino sketch: Serial.println("Hello!"); // → Arduino framework writes the bytes of "Hello!\r\n" to UART0_FIFO_REG // → simulator calls onSerialData("H"), onSerialData("e"), ... // → Serial Monitor displays "Hello!" ``` To send data to the sketch from the Serial Monitor: ```typescript sim.serialWrite("COMMAND\n"); // → bytes are added to rxFifo // → reading UART0_FIFO_REG dequeues one byte from rxFifo ``` --- ## 10. Limitations ### ESP-IDF / Arduino Framework The Arduino framework for ESP32-C3 (based on ESP-IDF 4.4.x) has a complex initialization sequence that accesses non-emulated peripherals: | Peripheral | Why ESP-IDF accesses it | Effect in emulator | | ---------- | ----------------------- | ------------------ | | Cache controller | Configures MMU for flash/DRAM mapping | Reads 0, may not loop | | Interrupt Matrix | Registers ISR vectors | No effect (silenced) | | System registers | Configures PLLs and clocks | Reads 0 (assumes default speed) | | FreeRTOS tick timer | Timer 0 → periodic interrupt | No interrupt = tasks not scheduled | As a result, an Arduino sketch compiled with the full framework may execute partially — code prior to FreeRTOS initialization may work, but `setup()` and `loop()` depend on FreeRTOS running. **Scenarios that DO work:** - Bare-metal code (no framework, direct GPIO MMIO access) - Code fragments that do not use FreeRTOS (`delay()`, `millis()`, `digitalWrite()` require FreeRTOS) - ISA test programs (arithmetic operations, branches, loads/stores to DRAM) **Roadmap for full support:** 1. Cache controller stub (return values indicating "cache already configured") 2. Interrupt matrix stub (accept writes, ignore) 3. Basic timer peripheral (generate FreeRTOS tick periodically) 4. Once FreeRTOS is active: normal Arduino sketches should work ### Other Limitations | Limitation | Detail | | ---------- | ------ | | No WiFi | ESP32-C3 has BLE/WiFi radio; not emulated | | No ADC | GPIO 0-5 as ADC not implemented | | No hardware SPI/I2C | Hardware SPI/I2C peripherals return 0 | | No interrupts | `attachInterrupt()` does not work | | No RTC | `esp_sleep_*`, `rtc_*` not implemented | | No NVS/Flash writes | `Preferences`, `SPIFFS` not implemented | --- ## 11. Tests RISC-V emulation tests are in `frontend/src/__tests__/`: ```bash cd frontend npm test -- esp32c3 ``` ### `esp32c3-simulation.test.ts` — 30 tests (ISA unit tests) Directly verifies the instruction decoder in `RiscVCore`: | Group | Tests | What it verifies | | ----- | ----- | ---------------- | | RV32M | 8 | MUL, MULH, MULHSU, MULHU, DIV, DIVU, REM, REMU | | RV32C | 7 | C.ADDI, C.LI, C.LWSP, C.SWSP, C.MV, C.ADD, C.J, C.BEQZ | | UART | 3 | Write to FIFO → onSerialData, RX read, multiple bytes | | GPIO | 8 | W1TS set bit, W1TC clear bit, toggle, timestamp, multiple pins | | Lifecycle | 4 | reset(), start/stop, basic loadHex | ### `esp32c3-blink.test.ts` — 8 tests (end-to-end integration) Compiles `blink.c` with `riscv32-esp-elf-gcc` (the arduino-cli toolchain) and verifies execution in the simulator: | Test | What it verifies | | ---- | ---------------- | | `build.sh produces blink.bin` | Toolchain compiles correctly | | `binary starts with valid RV32 instruction` | Entry point is valid RISC-V code | | `loadBin() resets PC to 0x42000000` | Correct loading into flash | | `GPIO 8 goes HIGH after first SW` | First toggle correct | | `GPIO 8 toggles ON and OFF` | 7 toggles in 2000 steps (4 ON, 3 OFF) | | `PinManager.setPinState called` | Integration with the component system | | `timestamps increase monotonically` | Simulated time is consistent | | `reset() clears GPIO state` | Functional reset | **Expected result:** ```text ✓ esp32c3-simulation.test.ts (30 tests) ~500ms ✓ esp32c3-blink.test.ts (8 tests) ~300ms ``` ### Bare-Metal Test Binary ```text frontend/src/__tests__/fixtures/esp32c3-blink/ ├── blink.c ← bare-metal source code ├── link.ld ← linker script (IROM @ 0x42000000, DRAM @ 0x3FC80000) ├── build.sh ← build script (uses arduino-cli toolchain) ├── blink.elf ← (generated) ELF with debug info ├── blink.bin ← (generated) raw 58-byte binary └── blink.dis ← (generated) disassembly for inspection ``` --- ## 12. Differences vs Xtensa Emulation (ESP32 / ESP32-S3) | Aspect | ESP32-C3 (RISC-V) | ESP32 / ESP32-S3 (Xtensa) | | ------ | ----------------- | ------------------------- | | Engine | `Esp32C3Simulator` (TypeScript, browser) | `Esp32Bridge` + backend QEMU | | Backend dependency | **No** — 100% in the browser | Yes — WebSocket to QEMU process | | Startup | Instant | ~1-2 seconds | | GPIO | Via MMIO W1TS/W1TC | Via QEMU callbacks → WebSocket | | WiFi | Not emulated | Emulated (hardcoded SSIDs) | | Hardware I2C/SPI | Not emulated | Emulated (synchronous callbacks) | | LEDC/PWM | Not emulated | Emulated (periodic polling) | | NeoPixel/RMT | Not emulated | Emulated (RMT decoder) | | Arduino framework | Partial (FreeRTOS not active) | Full | | CI tests | Yes (Vitest) | No (requires native lib) | --- ## 13. Key Files | File | Description | | ---- | ----------- | | `frontend/src/simulation/RiscVCore.ts` | RV32IMC emulator core (I + M + C extensions) | | `frontend/src/simulation/Esp32C3Simulator.ts` | ESP32-C3 memory map, GPIO, UART0, RAF loop | | `frontend/src/utils/esp32ImageParser.ts` | ESP32 image format parser (merged flash → segments) | | `frontend/src/store/useSimulatorStore.ts` | `ESP32_RISCV_KINDS`, `createSimulator()`, `compileBoardProgram()` | | `frontend/src/__tests__/esp32c3-simulation.test.ts` | ISA unit tests (30 tests) | | `frontend/src/__tests__/esp32c3-blink.test.ts` | End-to-end integration test (8 tests) | | `frontend/src/__tests__/fixtures/esp32c3-blink/` | Bare-metal test firmware + toolchain script |
