Arne Durr dcf9c3a880 Update standard_parts.scad
Fixed: "TODO (from MCAD): proper screw cap values: instead of "height" will use METRIC_BOLT_CAP_HEIGHTS[size]+tolerance" this is not necessary because the cap height is the bold size so M3 cap is 3mm heigh.
Also fixed some tolerances because they where terrible big. On my print a M3 hole could fit a M4 bold and in the nut holder the nut could almost turn around.
Removed radius from hole_for_screw and hole_for_nut to clean up the code and it fixed errors in the STL output of OpenSCAD.
 		2014-11-29 17:51:29 +01:00
..
Firmware + Electronic Case + New .dxf of Base, Workbed and Calibration electrode 2014-11-04 11:44:25 +01:00
Output_files Removed unnecessary dxf files 2014-11-05 16:10:45 +00:00
SampleGcodes Added M8 keychain scad source file 2014-09-22 23:10:20 +02:00
Source_files Update standard_parts.scad 2014-11-29 17:51:29 +01:00
README.md Fixed README image paths 2014-11-05 15:40:48 +00:00

README.md

Hardware for Cyclone-PCB-Factory

Version 2.0

Developed in the department of innovation and robotics of bq.

Adressing all the issues from the original design, and implementing improvements by yOPERO, Martin Zabojnik and others.

  • More robust design with tougher parts:
  • Better holders for the linear bearings (vibration made them slide away)
  • Reinforced nut/screw holders
  • Anti-backlash mechanisms
  • Improved gears with smoother edges
  • Attachment for a vacuum cleaner
  • Better scalability (parameterized design)
  • Using a Dremel 200 as the spindle motor
  • Integrated endstop holders

Future improvements:

  • Endstop integration for Z (integrated probe)
  • Re-implement the Z carriage, currently inherited from Cyclone V1

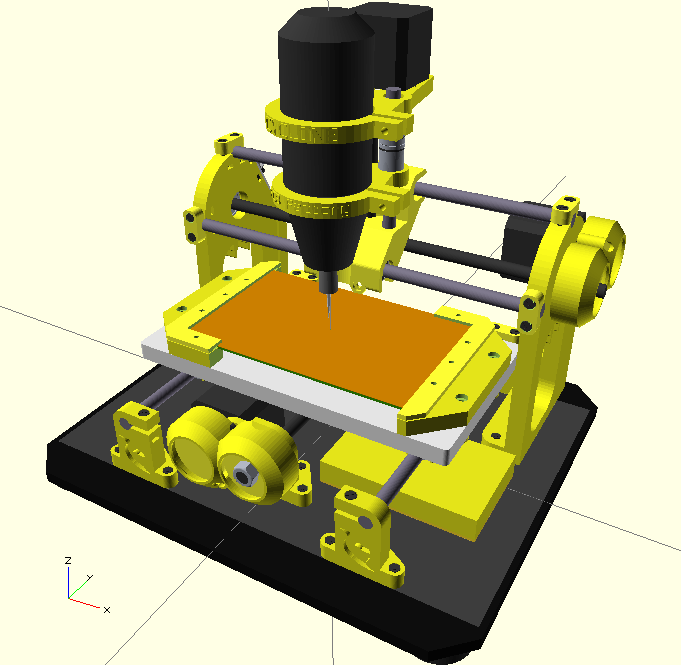

ScreenShot

The new design tries to be more parameterized:

ScreenShot

Disclaimer

This hardware/software is provided "as is", and you use the hardware/software at your own risk. Under nocircumstances shall any author be liable for direct, indirect, special, incidental, or consequential damages resulting from the use, misuse, or inability to use this hardware/software, even if the authors have been advised of the possibility of such damages.
