CNC_ShieldBoX

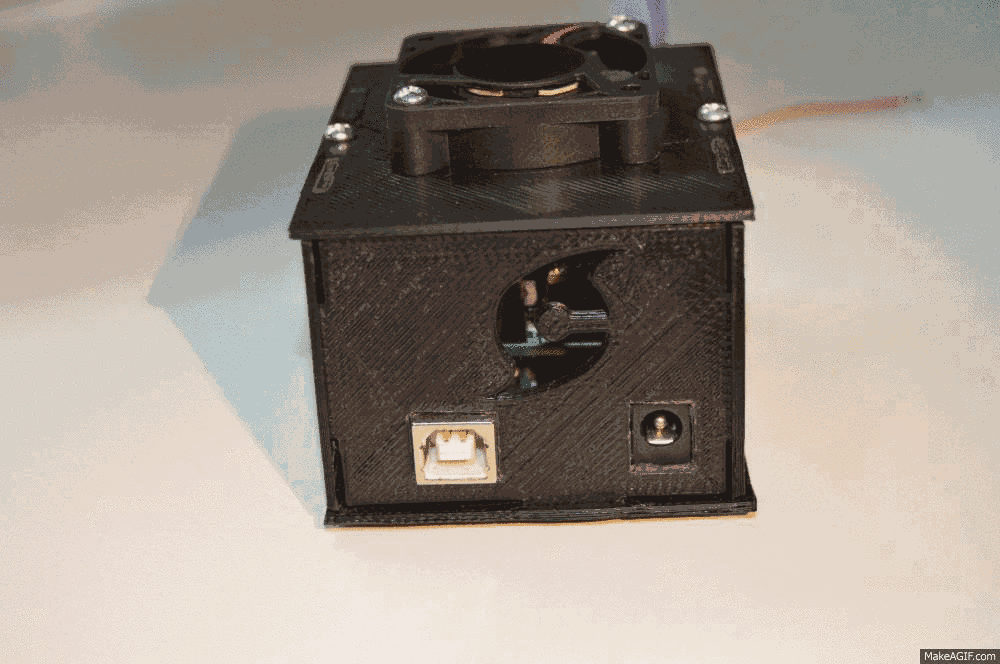

This is a 3D printable box created to house an Arduino Uno form factor and a CNC Shield. ScreenShot

Status

This is still a work in progress. For now it only supports Arduino uno form factor but I am planning to add Arduino Mega and other boards in the future. The design was made using openScad.

Usage

You can personalize:

-The size of the height, width of the walls.

-Whether you want a logo(*.dfx imported to openScad).

-Size of the fan's screws.

-Size of the screws used on the assembly.

License

Attribution - Share Alike - Creative Commons (http://creativecommons.org/licenses/by-sa/3.0/)
